Reaction Timer

Step 1 – how to measure time

There are two things you need to learn before you can build a reaction time tester. The first is how to measure time.

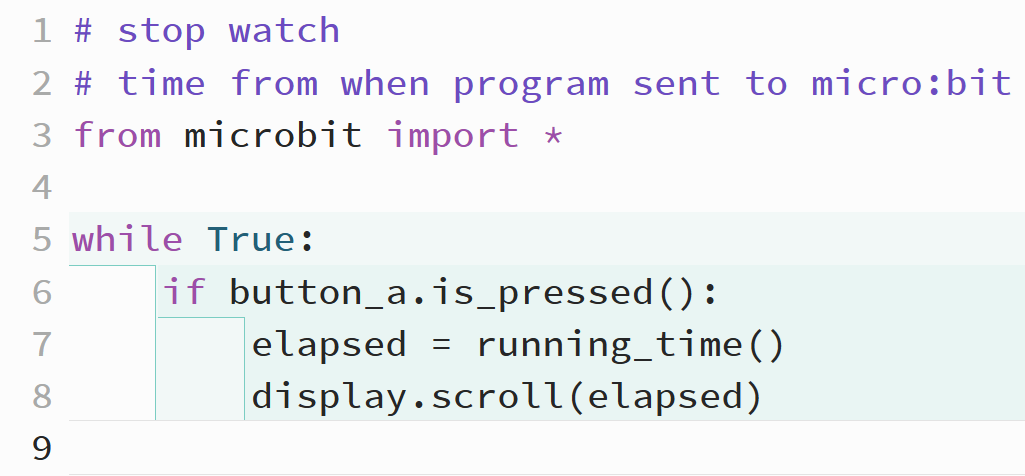

The code below shows you how to do this. There are a couple of things to notice:

  1. we're going to use button a to show the time. This will be the time that has passed (elapsed) since the program was sent to the micro:bit
  2. line 7 uses the  running_time() command. This is the command which sends the time that has elapsed
  3. I'm going to store this in a variable called  elapsed
  4. line 8 simply displays the value that got sent to the variable

Once you have the program written, send it to the micro:bit and press button a a few times. You should see that the time increases each time. Remember, the time is the time since you sent the program to the mico:bit.

Code image
